Coming Soon! Eaton’s modular DC power solutions meet you where you are in your power journey, enabling efficient and cost-effective 50V DC power deployment in busbar-enabled 19" racks while also supporting fully integrated 21” OCP ORV3 racks.
Data center power architectures are shifting toward DC as AI and HPC drive higher rack densities. Eaton’s modular 50V DC solutions deliver rack-level power—scaling from 33 kW to 198 kW per rack—without the complexity of custom or ODM designs.

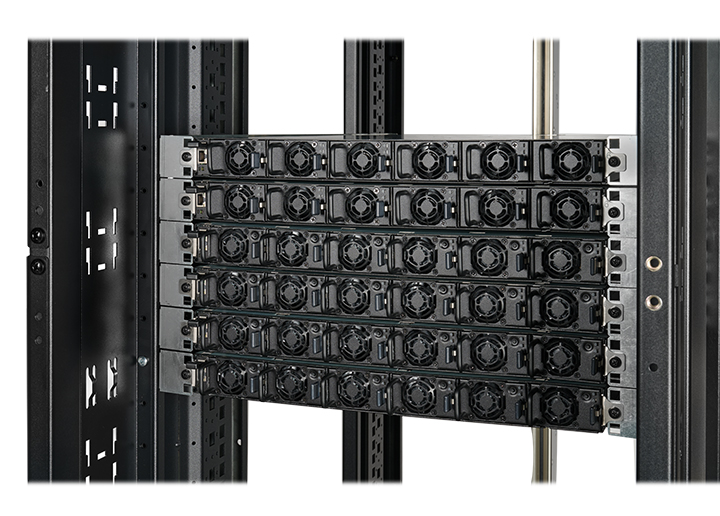

Mount 19” power shelves and BBU shelves in 21” (OCP ORV3) racks.

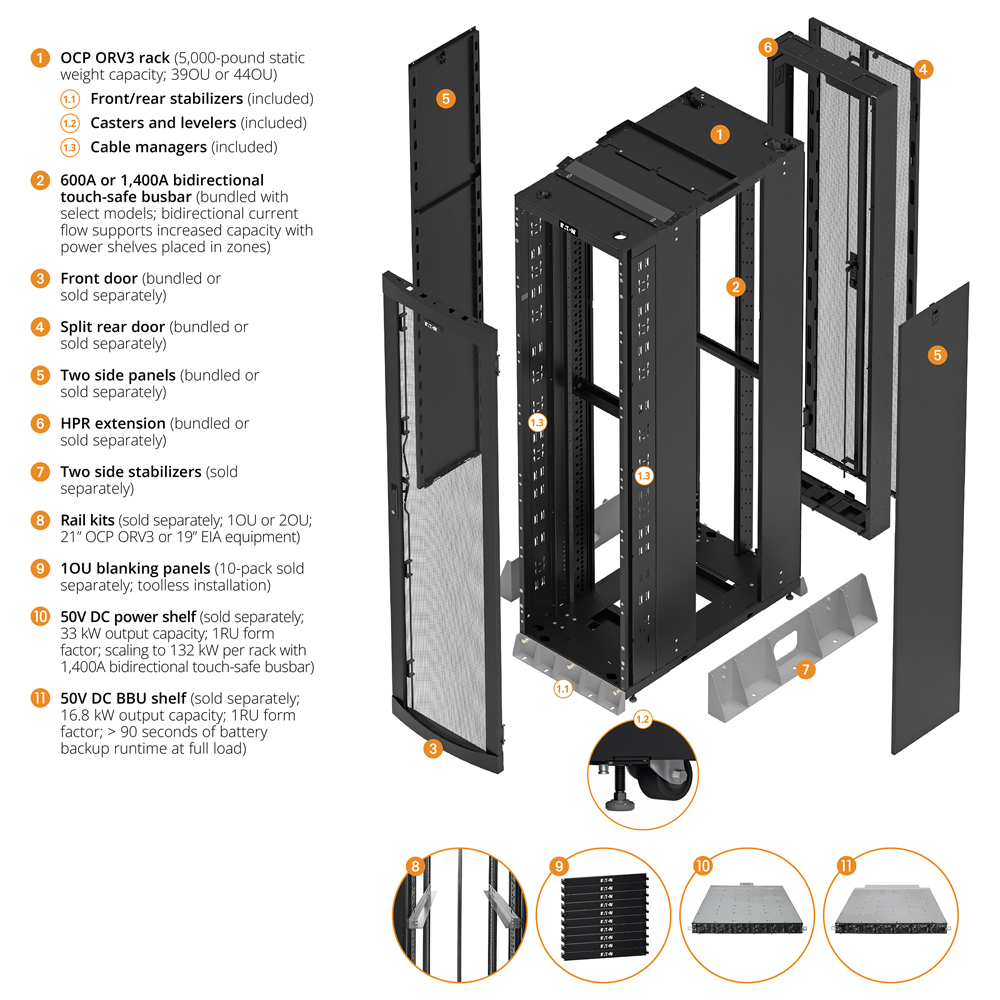

Available in 39OU and 44OU sizes with a 600A or 1400A bus bar and 5,000-pound weight capacity, ORV3 racks are offered with or without doors and side panels. Eaton’s reference designs are also fully customizable.
Eaton supports Open Compute Project (OCP) ecosystems, including ORV3 rack and 50V DC power configurations designed to help customers deploy modern architectures with off-the-shelf convenience.
Eaton has expanded its thermal management capabilities through the acquisition Boyd Thermal, strengthening expertise across advanced cooling approaches for higher-density compute environments.
| Input voltage | 200–277V AC (L-N) (3P Wye, 4-wire + ground) |
| Efficiency | Up to 97.5% |
| Output voltage (nominal) | 50V DC at no load; 49V DC at full load |
| Output current | 673.5A at 49V DC |
| Output capacity | 33 kW per power shelf (fully populated with six PSUs) 198 kW maximum (six active power shelves; the number of active power shelves may be limited by busbar capacity) |
| Internal protection | Voltage, current, temperature |
| Service feature | Hot-swappable PSUs |
| Cooling | Forced air; front-to-rear airflow |
| Remote monitoring | RJ45 Ethernet port; Redfish protocol |
| Form factor | 1RU rackmount |
| Dimensions (H x W x D) | 1.75 x 17.6 x 33.05 in. (44.45 x 448 x 839.5 mm) |
| Weight | 26.5 lb. (12 kg) empty; ≤ 77.2 lb. (35 kg) fully populated |
| Operating temperature | 23°F to 113°F (-5°C to 45°C) without derating |
| Storage temperature | -40°F to 140°F (-40°C to 60°C) |
| Operating humidity | 5% to 85%, non-condensing |
| Altitude | 0 to 10,000 ft. (0 to 3,050 m) |
| Compliance | IEC/EN/UL 62368-1 (Safety); IEC/EN 61000-4-2 Criterion A (ESD); IEC/EN 61000-4-5 (Surge); IEC/EN 61000-3-2 Class A (Harmonics); EN 55032/CISPR 32 Class A (EMC); IP20; RoHS |
| Warranty | 2-year limited warranty; extended warranties and on-site services available |
| Input voltage | 200–277V AC (1P, 2-wire + ground) |
| Output voltage (nominal) | 50V DC at no load; 49V DC at full load |
| Output current | 112.25A at 49V DC per PSU |
| Output capacity | 5.5 kW per PSU |
| Dimensions (H x W x D) | 1.575 x 2.68 x 25.2 in. (40 x 68 x 640 mm) |
| Weight | ≤ 7.28 lb. (3.3 kg) |
| Battery voltage | 18.2–28V DC |
| Efficiency | Up to 97% |
| Output voltage (nominal) | 50V DC at no load; 49V DC at full load |
| Output capacity | 16.8 kW (2.8 kW per BBU module) |
| Battery chemistry | Lithium-ion |
| Runtime | > 90 seconds at full load |
| Service feature | Hot-swappable BBU modules |
| Cooling | Forced air; front-to-rear airflow |
| Dimensions (H x W x D) | 1.75 x 17.6 x 33.05 in. (44.45 x 448 x 839.5 mm) |
| Weight | 21.2 lb. (9.6 kg) empty; 71.4 lb. (32.4 kg) fully populated |
| Operating temperature | 23°F to 113°F (-5°C to 45°C) without derating |
| Storage temperature | -40°F to 140°F (-40°C to 60°C) |
| Operating humidity | < 85%, non-condensing |
| Altitude | 0 to 10,000 ft. (0 to 3,050 m) |
| Compliance | UL 1973, UL 9540/9540A, IEC/EN/UL 62368-1, IEC 62133 (Safety); EN 55032/CISPR 32 Class A, FCC/ICES-003 (EMC emission); EN 55035, IEC 61000-4-2/-3/-4/-5/-6/-8, Criterion A (Immunity); RoHS, REACH, Halogen-free |
| Warranty | 2-year limited warranty; extended warranties and on-site services available |
| Battery voltage | 18.2–28V DC |
| Output voltage (nominal) | 50V DC at no load; 49V DC at full load |
| Output current | 57.14A at 49V DC per BBU module |
| Output capacity | 2.8 kW per BBU module |
| Dimensions (H x W x D) | 1.575 x 2.68 x 27.28 in. (40 x 68 x 693 mm) |
| Weight | 8.4 lb. (3.8 kg) |
| Due to continuous improvement programs, all specifications are subject to change without notice. | |
